Nissan Patrol GU 3.0lt CRD

Engine Remap & Tillix Valve

What's Included?

Pre-Tune Health Check
Tilix Valve
Engine Remap
Before & After Print Out

Model: GU CRD ZD30 3.0lt

Engine Remap & Tillix Valve: $1700.00


Share:
  • addressString

Stage 1

STANDARD
DYNO TUNED
DIFFERENCE

POWER

116

KW

145

KW

29

KW

TORQUE

345

NM

431

NM

86

NM

Nissan GU Patrol 3.0L ZD30 CRD Tune with Tillix Valve
Suits 3.0L ZD30 common-rail turbo-diesel GU Patrol models, 2007–2016.

The ZD30 CRD GU Patrol pairs the Patrol’s legendary toughness and off-road ability with a common-rail turbo-diesel. Plenty are still out there touring, towing and heading well off the beaten track, loaded up and working hard.

From the factory, the ZD30 CRD is set up conservatively, and boost is regulated by a factory boost control solenoid. A GU with a full load, a camper or a van behind it feels the weight on long climbs and at highway speed. Our package pairs a Tillix valve with an engine tune to give the ZD30 more to work with.

Tillix valve

The factory boost control solenoid is replaced with a Tillix valve, an Australian-made boost control valve designed specifically for the ZD30. It gives the turbo steady, consistent boost control, which is the foundation for a reliable increase in performance.

Engine tune

With boost control taken care of, our calibration lifts power and torque where the Patrol needs them most: low and in the midrange, where it does its towing and climbing. The result is stronger pulling power, sharper response, and a Patrol that holds its speed more easily on hills and feels less strained when it’s loaded up.

Our focus is controlled, real-world calibration that keeps the engine working within itself, rather than chasing headline figures. Every tune is set up and verified on the dyno, so the gains are measured rather than guessed.

What’s included

Pre-tune health check and baseline dyno run

We assess your engine under load, record its data and measure its current power and torque. If we find an issue, you’ll hear about it before we touch the tune, not after.

Fault code scan

We scan for stored and pending fault codes before any tuning starts.

Tillix valve

The factory boost control solenoid is replaced with a Tillix valve.

Engine remap

Our calibration, developed for the ZD30 CRD with the Tillix valve, delivers more power and torque with smooth drivability.

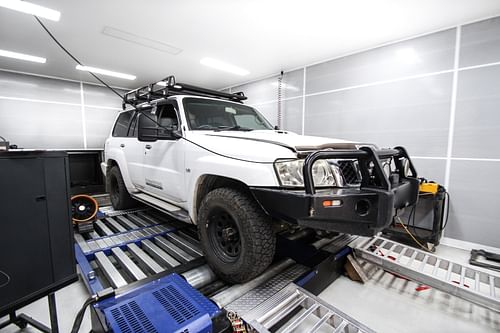

Data logging and dyno testing

We monitor how your engine responds under load throughout the tuning process and verify the results on the dyno.

Post-tune road test

Every vehicle is road-tested before handover so we can check how it drives beyond the dyno.

Before and after dyno printout

You’ll receive a printout showing your power and torque before and after tuning, so you can see the results for yourself.

Talk to the team

If you want more from your GU, give the team a call to hear what our tune can do for it.

This is for a common-rail Patrol only, for a direct injection, please GU Patrol Di model.

Please note

  • Before and after figures are engine figures. They are calculated by applying the percentage gain achieved on our dyno to the manufacturer’s quoted power and torque, and are based on vehicles running standard wheels and tyres. They are provided as a guide only.
  • Results vary between vehicles depending on kilometres, engine condition, modifications fitted, and wheel and tyre size. The before and after dyno print-outs supplied with each tune show figures measured at the wheels, which will be lower than engine figures. Larger or heavier wheels and tyres will reduce measured figures further.
  • Vehicles must be in good mechanical condition prior to tuning. Increases in power on high-kilometre engines are assessed case by case.
  • Additional parts and labour may be required where worn or faulty components are identified, and these will be quoted before any work proceeds.
  • Prices are subject to change without notice. Images are for illustration purposes only.
