Toyota Landcruiser 200 series (2015 - 2021) Stage 3

High Flow Injectors, Turbocharger Upgrade + Engine & Transmission Remap

What's Included?

GTurbo G380 Turbocharger's & Gasket Kit
GTurbo High Flow Injectors (Exchange)
Pre-Tune Health Check
Engine Remap
Transmission Remap
Before & After Print Out

Model: VDJ200 DPF

Years: 2015 - 2021


Share:
  • addressString

Stage 3

STANDARD
DYNO TUNED
DIFFERENCE

POWER

200

KW

365

KW

165

KW

TORQUE

650

NM

1200

NM

550

NM

gears
Stage 1

What's Included?

Pre-Tune Health Check

Engine Remap

Transmission Remap

Before & After Print Out

gears
Stage 2

What's Included?

GTurbo High Flow Injectors (Exchange)

All Labour & Fluids

Pre-Tune Health Check

Engine Remap

Transmission Remap

Before & After Print Out

gears
Stage 3

What's Included?

GTurbo G380 Turbocharger's & Gasket Kit

GTurbo High Flow Injectors (Exchange)

All Labour & Fluids

Pre-Tune Health Check

Engine Remap

Transmission Remap

Before & After Print Out

gears
Recommended Inclusions:

Manta Stainless Steel Exhaust System

Upgraded Top Mount Intercooler

Donaldson Power Core Airbox

Landcruiser 200 Series V8 Diesel (DPF): Stage 3 Engine & Transmission Tune with Turbo and Injector Upgrade
Suits DPF-equipped 200 Series Landcruisers.

The 200 Series you should have had from day one

The 1VD V8 diesel has never lacked capability. The factory transmission calibration is what holds it back. It hunts for gears, it’s slow to lock the converter, and it never quite settles on the highway.

Stage 3 is our most complete 200 Series package. It combines our engine and transmission remap with a GTurbo G380 twin turbo upgrade and high-flow injectors, all on factory electronics, with no chips, piggyback modules, lock-up kits or cut wires. Owners regularly tell us our 200 Series tune makes it feel like a different vehicle. Stage 3 is the strongest version of it.

GTurbo G380 twin turbo upgrade

The factory twin turbos on the 1VD were sized for factory power. Once fuel and calibration move beyond standard, the turbos become the limit. Stage 3 replaces both with the GTurbo G380, a matched twin turbo pair designed specifically for the 200 Series.

The G380 moves considerably more air than the factory units while still building boost quickly from low in the rev range. That means strong, early torque for towing and real pulling power right through the rev range, with the airflow to make full use of the high-flow injectors.

High-flow injector upgrade

The factory injectors set the limit on how much fuel the V8 can use. Stage 3 replaces them with GTurbo high-flow injectors, built to deliver fuel precisely at higher outputs.

With the extra fuel and air available, the calibration is written to make the most of the upgraded hardware. You get the biggest lift in power and torque of any of our 200 Series packages, and plenty in reserve for heavy towing and long grades.

Exchange basis

The injectors are supplied on an exchange basis: your factory injectors are returned when the new ones are fitted. Brand-new injectors can also be supplied outright. Please speak with the team if you’d like that option.

Fixing the gearbox

If you’ve driven a 200 Series any distance, you’ll know the routine. You speed up to coax it into 6th, then ease off and hope it stays there. The converter is slow to lock, and on some vehicles it won’t hold lock-up once it gets there. A small hill or a bit of headwind can be enough to drop it back to 5th or 4th.

Lock-up kits try to work around this with a button that forces the converter to lock. Our remap fixes the calibration itself, so the transmission does the job without one.

Into 6th at 100km/h, and it stays there

With revised shift points, the 200 Series moves into 6th at highway speed by itself. You don’t need to coax it or manage the throttle.

Earlier torque converter lock-up

The converter now locks earlier in 4th, 5th and 6th gear and stays locked. Less slip gives you a more direct, connected drive and lower transmission temperatures, which matters most when you’re towing a heavy load over long distances.

Downshifts that make sense

Revised downshift speeds mean the transmission holds its gear through gentle hills and headwinds. It drops a gear only when the road actually calls for it.

Line and converter pressure matched to the extra torque

More engine torque needs more clamping force inside the transmission. We raise the transmission line pressure and the torque converter clutch pressure to match the extra torque from the engine remap.

That pressure is what gives the transmission its grip. You get firm, positive shifts and a converter that locks with confidence. Without it, a tuned engine can leave the transmission with soft, slow shifts and clutches that slip, which wears them out sooner. With the pressure set to suit the torque, shifts stay crisp and the gearbox is protected for the long haul.

Power and torque where it counts

The engine calibration adds strong, usable power and torque across the rev range, starting low, where a 200 Series does its real work. Combined with the turbo and injector upgrades and the transmission changes, it pulls harder, responds faster and tows with noticeably less effort. With the car sitting in the right gear and the converter locked, you’ll also see better fuel efficiency. Power figures are on the Power Figures tab.

Done the way Toyota does it

We reprogram the engine and transmission through the OBD port, the same way Toyota does in the factory. Nothing goes on a bench. The difference is that our calibration is written for how these vehicles are actually driven in Australia: 100km/h cruising, heavy towing and long distances.

Proven across Australia and around the world

Our tuning team has put many hours of development into this calibration. Since then it has been fitted to hundreds of 200 Series Landcruisers across Victoria and Australia, and we’ve sold tunes to owners around the world. It’s built for towing and touring, and it makes every short trip around town better too.

What’s included

Pre-tune health check and baseline dyno run

We assess your engine under load, record its data and measure its current power and torque. If we find an issue, you’ll hear about it before we touch the tune, not after.

Fault code scan

We scan for stored and pending fault codes before any tuning starts.

GTurbo G380 twin turbo upgrade

Both factory turbos are replaced with a GTurbo G380 twin turbo pair.

High-flow injector upgrade

GTurbo high-flow injectors are supplied on an exchange basis and fitted. New injectors are available outright on enquiry.

Engine & transmission remap

Our Stage 3 calibration, developed for the 200 Series with the G380 turbos and high-flow injectors, delivers more power and torque with smooth drivability, along with the transmission changes described above.

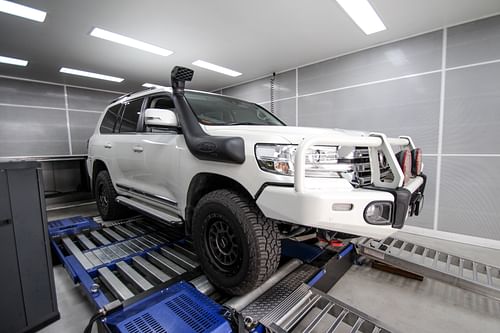

Data logging and dyno testing

We monitor how your engine responds under load throughout the tuning process and verify the results on the dyno.

Post-tune road test

Every vehicle is road-tested before handover so we can check how it drives beyond the dyno.

Before and after dyno printout

You’ll receive a printout showing your power and torque before and after tuning, so you can see the results for yourself.

Talk to the team

If you want everything your 200 Series has to give, give the team a call to talk through Stage 3.

Disclaimer: All vehicles must be equipped with a high flow exhaust system of good quality.

Please note

  • Before and after figures are engine figures. They are calculated by applying the percentage gain achieved on our dyno to the manufacturer’s quoted power and torque, and are based on vehicles running standard wheels and tyres. They are provided as a guide only.
  • Results vary between vehicles depending on kilometres, engine condition, modifications fitted, and wheel and tyre size. The before and after dyno print-outs supplied with each tune show figures measured at the wheels, which will be lower than engine figures. Larger or heavier wheels and tyres will reduce measured figures further.
  • Vehicles must be in good mechanical condition prior to tuning. Increases in power on high-kilometre engines are assessed case by case.
  • Additional parts and labour may be required where worn or faulty components are identified, and these will be quoted before any work proceeds.
  • Prices are subject to change without notice. Images are for illustration purposes only.
